1、 Equipment usage:

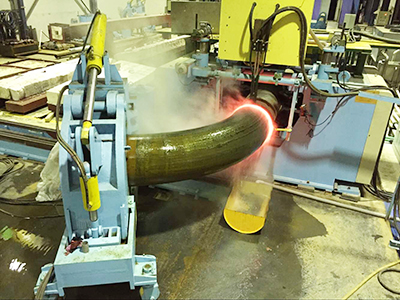

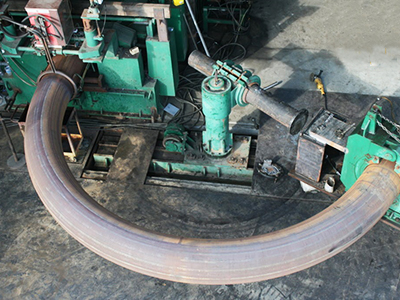

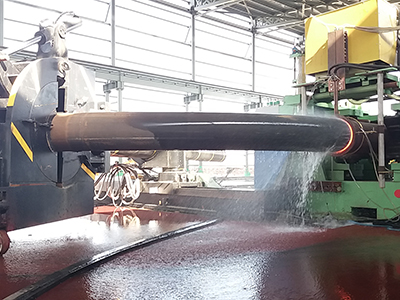

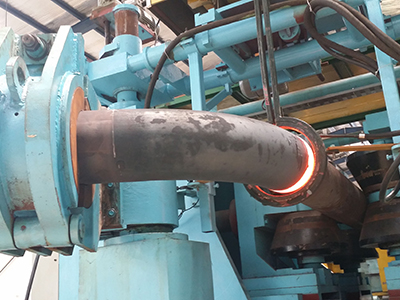

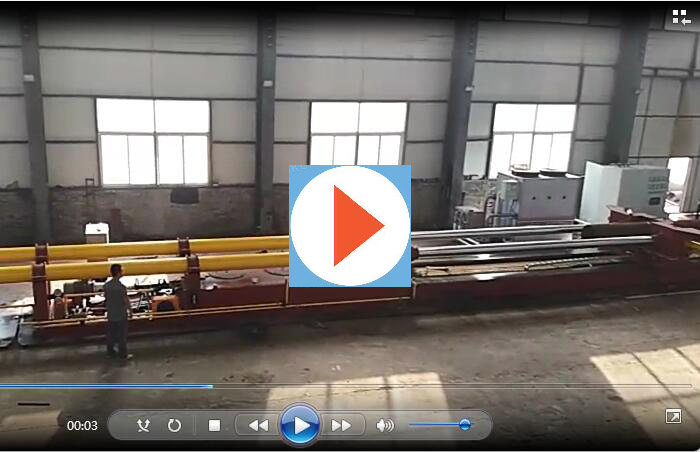

The medium frequency pipe bending machine uses medium frequency electric induction heating to bend the workpiece into a large radius pipe under local heating conditions. Mainly used in industrial fields such as petrochemicals, pharmaceutical manufacturing, oil and gas transportation, electricity, boilers, and construction.

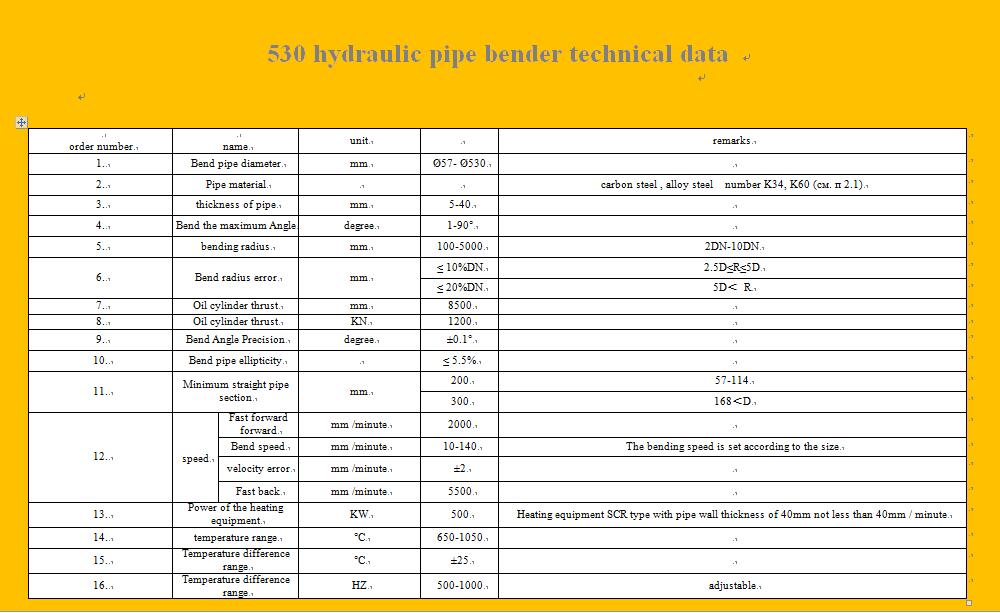

2、 Technical parameters of bending pipes:
1. The raw materials used for the bending of this equipment are various circular or rectangular steel pipes, angle iron, channel steel, I-beam and other profiles.
2. Materials of bent pipes: carbon steel, alloy steel, stainless steel, etc.
3. Pipe bending machines are generally capable of continuously producing bent steel pipes with multiple sections and radii of curvature. The bending radius is generally 2.5D-6D, and can bend pipes of any large radius according to customer needs.
4. The bending angle is generally 0-90 ° or 0-180 ° (the bending angle can be set arbitrarily).
5. Push bending pipe diameter and wall thickness range: diameter: φ 89-1420mm, wall thickness: φ 5-120mm (the equipment can be designed and manufactured in sections).
6. The stroke of the main oil cylinder is determined by the diameter and bending radius of the bent pipe.
3、 Equipment structure:
The medium frequency pipe bending machine uses medium frequency electric induction heating to bend the workpiece into a large radius pipe under local heating conditions. Mainly used in industrial fields such as petrochemicals, pharmaceutical manufacturing, oil and gas transportation, electricity, boilers, and construction.
2、 Technical parameters of bending pipes:
1. The raw materials used for the bending of this equipment are various circular or rectangular steel pipes, angle iron, channel steel, I-beam and other profiles.
2. Materials of bent pipes: carbon steel, alloy steel, stainless steel, etc.
3. Pipe bending machines are generally capable of continuously producing bent steel pipes with multiple sections and radii of curvature. The bending radius is generally 2.5D-6D, and can bend pipes of any large radius according to customer needs.
4. The bending angle is generally 0-90 ° or 0-180 ° (the bending angle can be set arbitrarily).
5. Push bending pipe diameter and wall thickness range: diameter: φ 89-1420mm, wall thickness: φ 5-120mm (the equipment can be designed and manufactured in sections).
6. The stroke of the main oil cylinder is determined by the diameter and bending radius of the bent pipe.

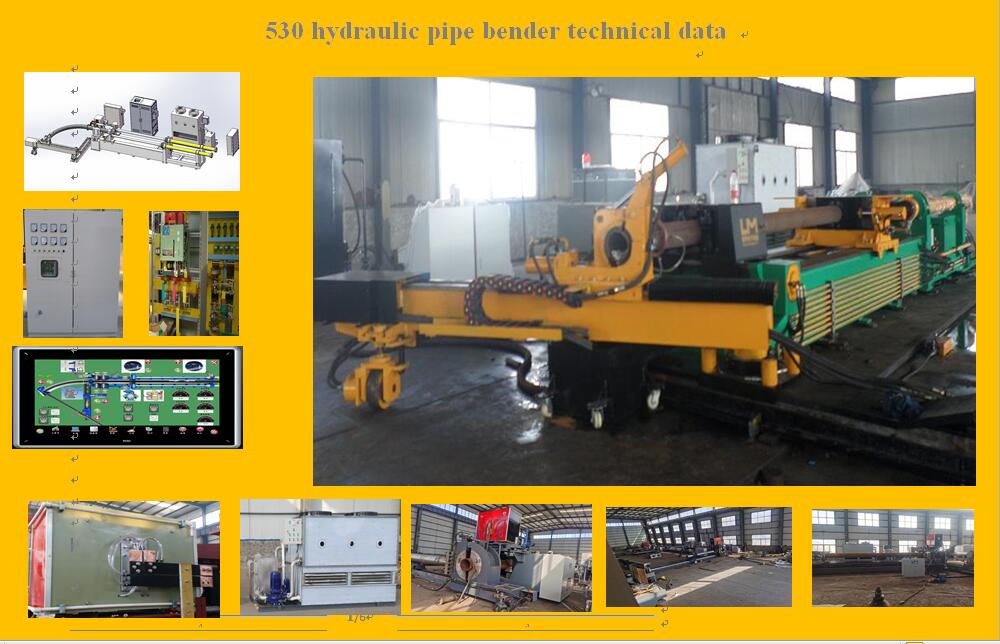

3、 Equipment structure:
The base frame, main oil cylinder, oil cylinder bracket, push plate, platform, sliding rail rocker arm, rocker arm spindle, card head transformer bracket, hydraulic oil tank and pump station, intermediate frequency power supply, transformer, operating platform (touch screen, PLC control system), cooling water circulation system, etc.
