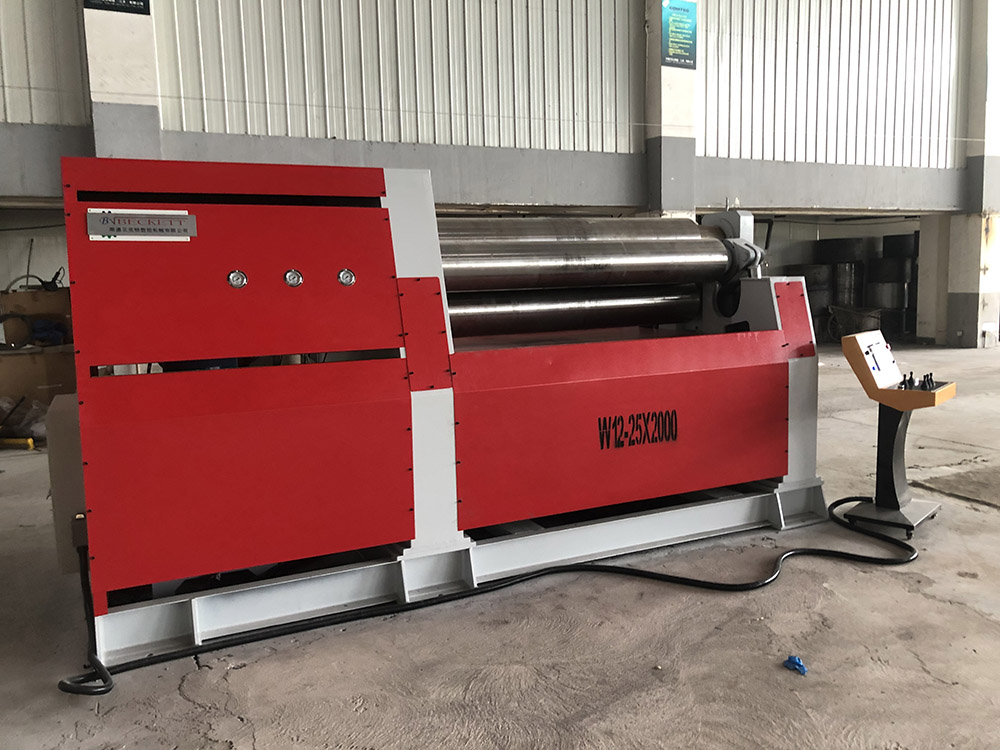

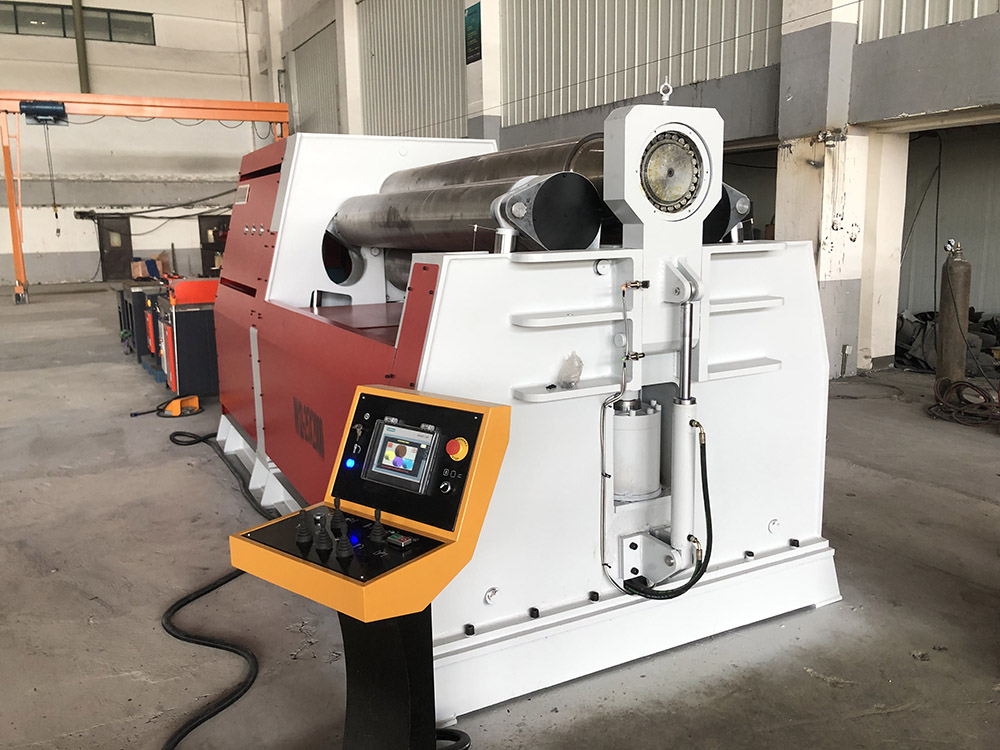

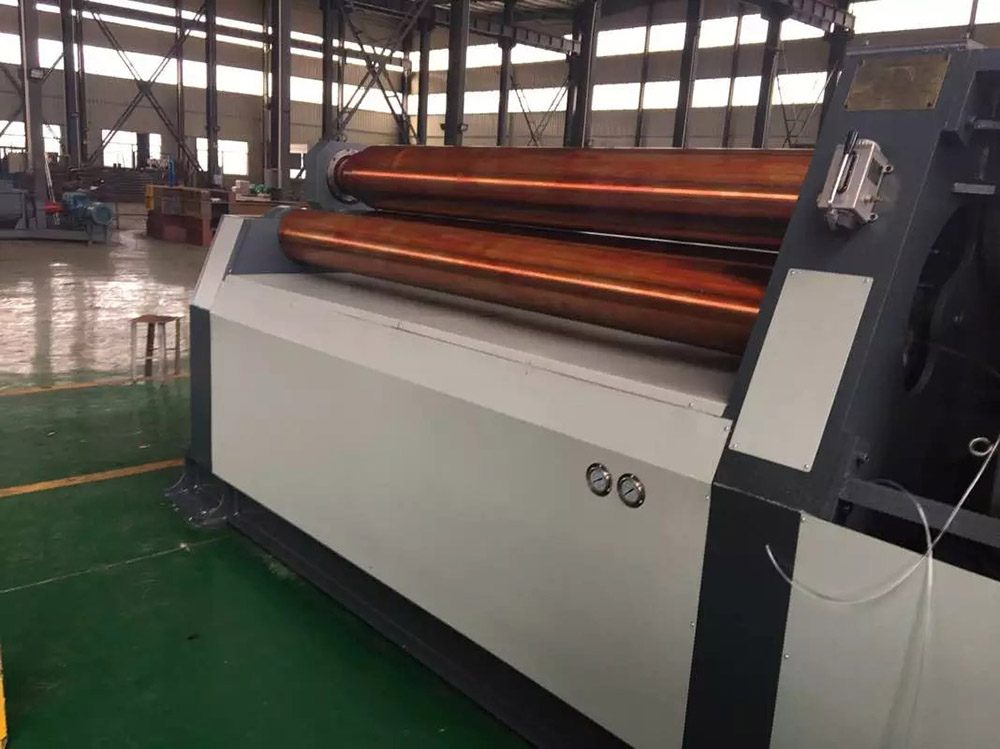

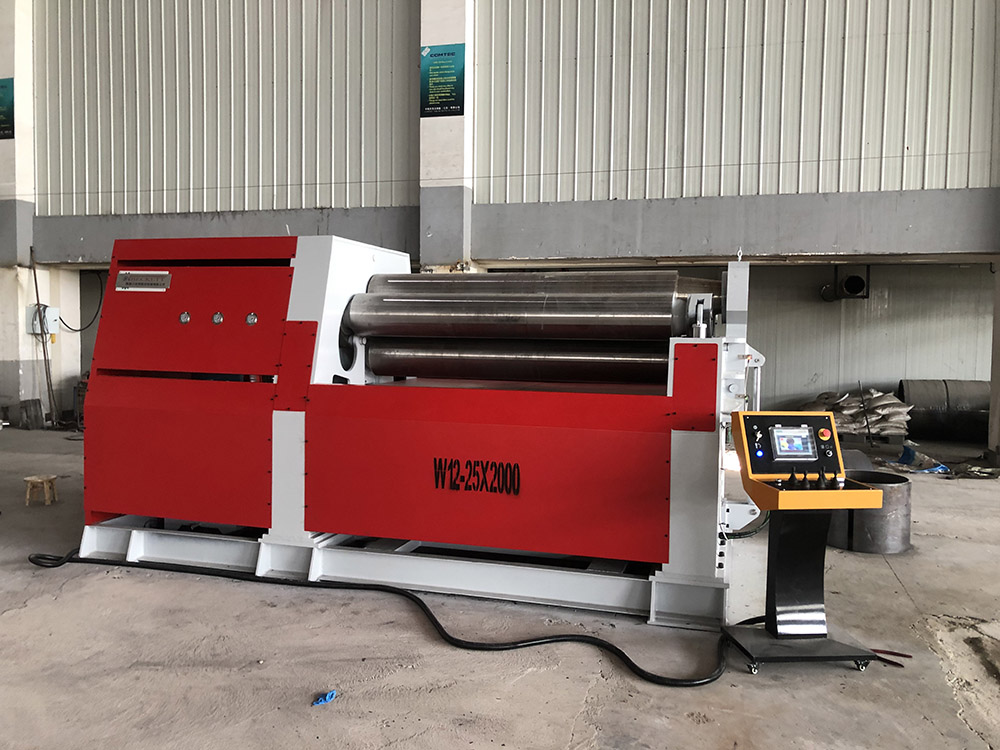

LOCATION：four-roll plate bending machine
Performance characteristics:
Convenient and simple operation, diverse rolling methods
CNC control, digital display of displacement of each working roller, high precision of winding and good roundness;
Fully hydraulic drive, efficient and energy-saving, with a driving power equivalent to 60% of traditional;
The production rate of a single round rolling machine is 50% -80% higher than that of a three roll plate rolling machine;
Convenient and accurate material matching, avoiding misalignment phenomenon;
Equipped with a cone device, convenient for rolling cones;
Permanent lubrication technology (the shaft does not require oil during its lifespan);
The board is always clamped by the upper and lower rollers during the rolling process, without slipping;
A cylinder with a diameter 1.1 times that of the upper roll can be rolled, and the length of the straight edge during pre bending at the end of the sheet metal is smaller than that of other types of rolling machines;
Easy to add handling devices, feeding devices, and support devices;
|
型号 |
厚度(mm) |
预弯厚度(mm) |
辊子工作长度(mm) |
板材屈服强度(Mpa) |
上辊直径(mm) |
下辊直径(mm) |
侧辊直径(mm) |
电机功率(KW) |
|
W12-4×2000 |
4 |
3.5 |
2050 |
245 |
160 |
140 |
120 |
3 |
|
W12-6×2000 |
6 |
5 |
2050 |
245 |
190 |
170 |
150 |
4 |
|
W12-8×2000 |
8 |
6.5 |
2050 |
245 |
210 |
190 |
170 |
5.5 |
|
W12-10×2000 |
10 |
8 |
2050 |
245 |
230 |
210 |
190 |
7.5 |
|
W12-12×2000 |
12 |
10 |
2050 |
245 |
270 |
250 |
210 |
11 |
|
W12-16×2000 |
16 |
13 |
2050 |
245 |
300 |
270 |
220 |
11 |
|
W12-20×2000 |
20 |
16 |
2050 |
245 |
330 |
300 |
240 |
11 |
|
W12-25×2000 |
25 |
20 |
2050 |
245 |
360 |
330 |
250 |
15 |
|
W12-30×2000 |
30 |
25 |
2050 |
245 |
390 |
360 |
300 |
18.5 |
|
W12-35×2000 |
35 |
28 |
2050 |
245 |
430 |
390 |
330 |
22 |
|
W12-40×2000 |
40 |
32 |
2050 |
245 |
460 |
420 |
360 |
30 |
|
W12-45×2000 |
45 |
36 |
2050 |
245 |
510 |
460 |
390 |
37 |
|
W12-50×2000 |
50 |
40 |
2050 |
245 |
550 |
510 |
420 |
45 |
|
W12-4×2000 |
4 |
3.5 |
2550 |
245 |
190 |
170 |
150 |
4 |
|
W12-6×2500 |
6 |
5 |
2550 |
245 |
210 |
190 |
170 |
5.5 |
|
W12-8×2500 |
8 |
6.5 |
2550 |
245 |
230 |
210 |
190 |
7.5 |
|
W12-10×2500 |
10 |
8 |
2550 |
245 |
270 |
250 |
210 |
11 |
|
W12-12×2500 |
12 |
10 |
2550 |
245 |
300 |
270 |
220 |
11 |
|
W12-16×2500 |
16 |
13 |
2550 |
245 |
330 |
300 |
240 |
11 |
|
W12-20×2500 |
20 |
16 |
2550 |
245 |
360 |
330 |
250 |
15 |
|
W12-25×2500 |
25 |
20 |
2550 |
245 |
390 |
360 |
300 |
18.5 |
|
W12-30×2500 |
30 |
25 |
2550 |
245 |
430 |
390 |
330 |
22 |
|
W12-35×2500 |
35 |
28 |
2550 |
245 |
460 |
420 |
360 |
30 |
|
W12-40×2500 |
40 |
32 |
2550 |
245 |
510 |
460 |
390 |
37 |
|
W12-45×2500 |
45 |
36 |
2550 |
245 |
550 |
510 |
420 |
45 |
|
W12-4×3000 |
4 |
3.5 |
3100 |
245 |
210 |
190 |
170 |
5.5 |
|
W12-6×3000 |
6 |
5 |
3100 |
245 |
230 |
210 |
190 |
7.5 |
|
W12-8×3000 |
8 |
6.5 |
3100 |
245 |
270 |
250 |
210 |
11 |
|
W12-10×3000 |
10 |
8 |
3100 |
245 |
300 |
270 |
220 |
11 |
|
W12-12×3000 |
12 |
10 |
3100 |
245 |
330 |
300 |
240 |
11 |
|
W12-16×3000 |
16 |
13 |
3100 |
245 |
360 |
330 |
250 |
15 |
|
W12-20×3000 |
20 |
16 |
3100 |
245 |
390 |
360 |
300 |
18.5 |
|
W12-25×3000 |
25 |
20 |
3100 |
245 |
430 |
390 |
330 |
22 |
|
W12-30×3000 |
30 |
25 |
3100 |
245 |
460 |
420 |
360 |
30 |
|
W12-35×3000 |
35 |
28 |
3100 |
245 |
510 |
460 |
390 |
37 |
|
W12-40×3000 |
40 |
32 |
3100 |
245 |
550 |
510 |
420 |
45 |
|
W12-50×3000 |
50 |
40 |
3100 |
245 |
610 |
560 |
480 |
55 |
|
W12-60×3000 |
60 |
48 |
3100 |
245 |
670 |
620 |
520 |
75 |
